In this tutorial you will get to know that how you can crate accelerometer sensor control LED's.






Material requirements are given below :-
  • ACCELEROMETER [MPU6050]
  • ARDUINO
  • LED's
  • RESISTOR [470 ohm]
  • BRAEDBOARD
  • JUMPER WIRES
Working

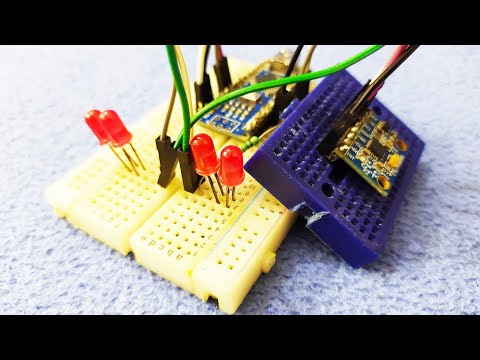

Whenever we tilt the sensor in left the LED towards the left starts glowing and whenever we tilt it towards the right right LED starts glowing .


CONNECTIONS
ARDUINO

GND          =     GND of MPU6050 sensor
5V              =     VCC of MPU6050 sensor
2                =      INT of MPU6050 sensor
A4/SDA    =      SDA of MPU6050 sensor
A5/SCL     =     SCL of MPU6050 sensor

CODE OF THE PROJECT :-
